System Aluminium Windows and Doors
System Aluminium Windows and Doors
System Aluminium Windows and
Doors
Introduction
The Charan Window CW1420, CW521 & CW720 range of windows and doors combine design flexibility with high performance. This is modern fenestration at its best — engineered for lasting value and crafted with superior aesthetics, offering a perfect blend of innovation and design excellence.
These window systems address the essential elements of form, function, and performance. Whether you’re an architect, building owner, or end user, Charan Windows meets and exceeds expectations. Behind every product stands the trusted tradition of Charan Windows — a leader in architectural aluminium window solutions.
The CW521/CW1420 system has been specially adapted for the Indian market, delivering high performance at an economical price point. The CW720 is a thermally broken system, designed for projects requiring enhanced thermal insulation and structural strength.
From cost-effective entry-level solutions to high-end systems offering superior performance, Charan Windows provides a comprehensive range that suits every application.

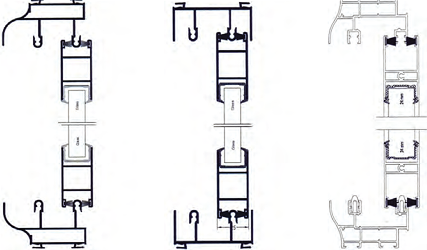

Product Features AA1420
AA1420
- Frame construction depth 45mm
- Projected out/in top hung side hung and butt hinges options
- Espangnolette locking, multi point locking and key locking handles possible
- Stays with adjustable panes up to 31mm
- Suits with all Kawneer offerings
AA720
- Frame construction depth 72mm
- Projected out/in top hung side hung and butt hinges options
- Multipoint locking and key locking handles possible
- 3 Chamber construction
- Thermally broken profiles
- Superior air/water tightness and thermal and acoustic performance
- Can accommodate panes up to 54mm
- Suits with all Kawneer offerings
AA521
- Frame construction depth 52mm
- Projected out/in top hung or side
- Multipoint locking and key locking handles possible
- Stays with adjustable friction
- Central gasket for superior air/water tightness
- Can accommodate panes up to 36mm
- Suits with all Kawneer offerings
Performance
- Widely tested systems
- Designed to be pressure equalized and fully drained
- Can support a large range of structural performance
- AA720 offers superior acoustic and thermal performance
A range of window / door offerings to suit all requirements and pockets
With the AA1510 and AA3765 sliding systems you no longer have to choose between style, performance and cost effectiveness. Now there is a product that offers improved performance, contemporary hardware, clean sightlines, plus a variety of finishes and configurations. Staying comfortable has never had more appeal. These systems have engineered to meet various levels of performance for residential and commercial applications.
The AA1510 system has been specifically adopted for the Indian market to provide an economical high performance product.
The minimal stile face width allows virtually uninterrupted vision. The AA3765 system offers a thermally broken version for superior thermal performance. A range of interlocks, lock stile mullions and meeting stiles are offered. The unique wrap around gasket design offers superior performance.
Product Features AA1420
AA1510
- Unique wrap around glazing gasket
- Accommodates panes from 6mm to 18mm
- Single unit frame section for quick fabrication and installation
- Fixed for adjustable rollers that can support glazing weight up to 120 kg
Performance
- Widely tested systems
- Designed to be pressure equalized and fully drained
- Can support a large range of structural performance
- Superior acoustic performance noise reduction up to 35 dB
AA3765
- 2-6 tracks and leaves possible
- Thermal break option available
- Accommodates panes up to 25 mm
- Easy to fabricate and install
- A range of interlock options to support demanding structural requirements
- Durable track insert resists corrosion and pitting providing a smooth and durable operating surface
Sliding System with exceptional and reliable performace at an economical price
